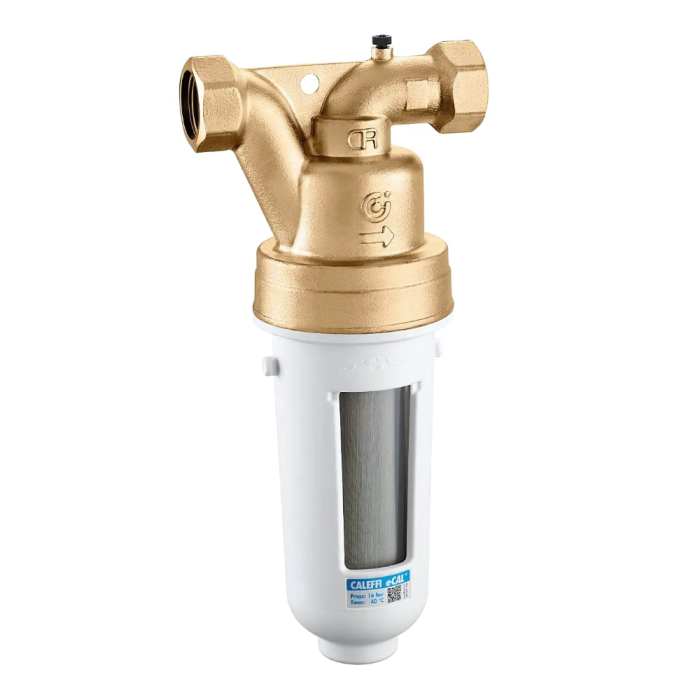

Altecnic CALEFFI eCAL Electrolytic Anti-Scale Device with Filter and Magnet (1 Inch F BSP)

Altecnic CALEFFI eCAL Electrolytic Anti-Scale Device with Filter and Magnet (1 Inch FBSP) 537761

Altecnic have launched the Caleffi eCAL, an innovative electrolytic anti-scale device designed to combat one of the most persistent challenges facing British heating systems: limescale caused by hard water.

The electrolytic anti-scale device with filter and magnet, installed directly on the domestic cold water pipe, limits limescale formation within the domestic water system and the devices connected to it.

It helps to maintain the original heat exchange performance levels of the boiler and heat exchanger in the DHW production circuit over time.

The anti-scale device offers continuous protection without the use of chemical substances, thereby preserving the characteristics of potable water and maintaining its hardness level.

Furthermore, it does not require electricity and does not need to be replaced or serviced frequently.

The external protection cover features transparent windows which can be used at any time to check whether the filter needs cleaning.

The filter should be cleaned in accordance with the specifications set out in standard EN 806-5 or in line with applicable standards.

The device comes with a label for recording the maintenance frequency.

After checking how clogged the filter is, it can be cleaned in a few simple steps.

The self-contained filtering cartridge can be washed under running water or replaced (spare part code F0002304).

Code 537761 Electrolytic anti-scale device with filter and magnet.

Complete with key for removal.

Connection: G 1 Inch (ISO 228-1)BSP F.

Maximum working pressure: 16 bar.

Working temperature range: 5 to 40 Degrees C.

Medium: potable water.

Filter mesh size: 50 microns.

Kv: 5,1 cubic metres/h.

Material: low lead DR dezincification resistant brass

Manufacturers Code: 537761
