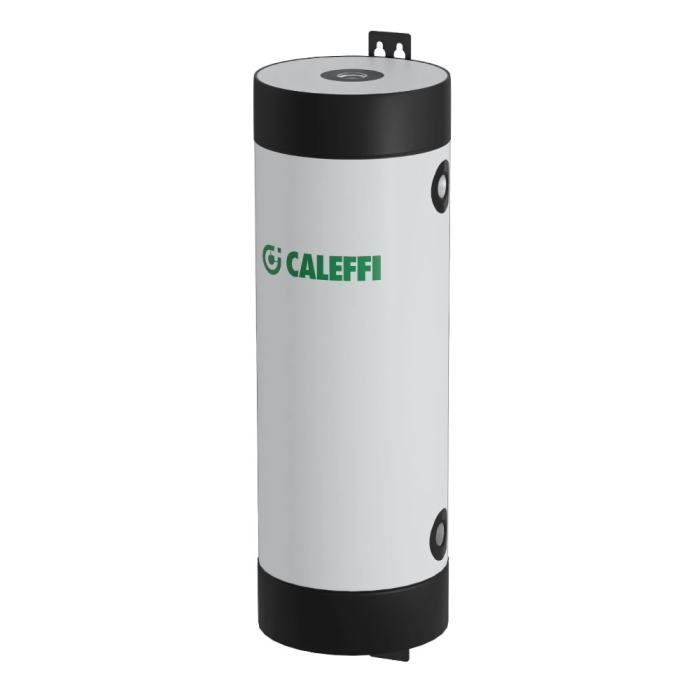

Altecnic Wall Mounted Buffer Tank for Heat Pump (100L)

Altecnic Wall Mounted Buffer Tank for Heat Pump (100L) 569100

Altecnic intermediate vessels are manufactured to meet the requirements of the Directive and Regulations listed and are suitable for heating and solar systems.

Complies with: PED 2014/68/EU Pressure Equipment (Safety) Regulations 2016: Great Britain Pressure Equipment (Safety) Regulations 2016: Northern Ireland The Altecnic 569 intermediate vessels (buffer tanks) are primarily designed for use with domestic or small commercial heat pumps.

They have two main functions as a hydraulic separator or buffer tank.

The hydraulic separator makes the heat pump Flow Rates and terminal Flow Rates unconnected.

The buffer function reduces the heat pump on/off switching.

Vessels are of steel construction with an external paint finish and are suitable for internal pressures up to 4 bar.

The vessel are designed for wall mounting and as supplied with two mounting brackets.

Intermediate vessels do not contain a diaphragm but act a buffer vessel.

Intermediate vessels are tested according to the Pressure Systems Directive.

An expansion vessel must ensure the heating/cooling system can work safely, particularly during periods when hot water is not being drawn off.

The water in the system can reaches temperatures up to 200 Degrees C and consequently the fluid within the system can either evaporate or reach levels that can damage all the components within the energy system over time.

In the event that the diaphragm within the expansion vessel could be subjected to temperatures above 110 Degrees C, an intermediate vessel (VDI 6002 directive) must be provided to protect the diaphragm.

Application Intermediate vessels should be installed in closed solar or heating systems containing water treated to prevent corrosion.

If the return temperature in solar installation exceeds 100 Degrees C or in a heating system exceeds 70 Degrees C an intermediate vessel should be installed.

The intermediate vessel should be installed between the heat/cooling source and the expansion vessel.

The function of the vessel is to avoid premature ageing of the diaphragm in the expansion vessel caused by water entering the diaphragm at too high a temperature.

The intermediate vessel hold a quantity of water which is allowed to cool and it is this cooled water which enters the expansion vessel.

Max working pressure: 4 bar.

Temperature range: -10 Degrees C to 95 Degrees C.

Connection: 8-50 litre - 1 Inch , 80-100 litre - 1.1/4 Inch.

Max percentage of glycol: 30%.

Dry Weight: 24Kg

Manufacturers Code: 569100
