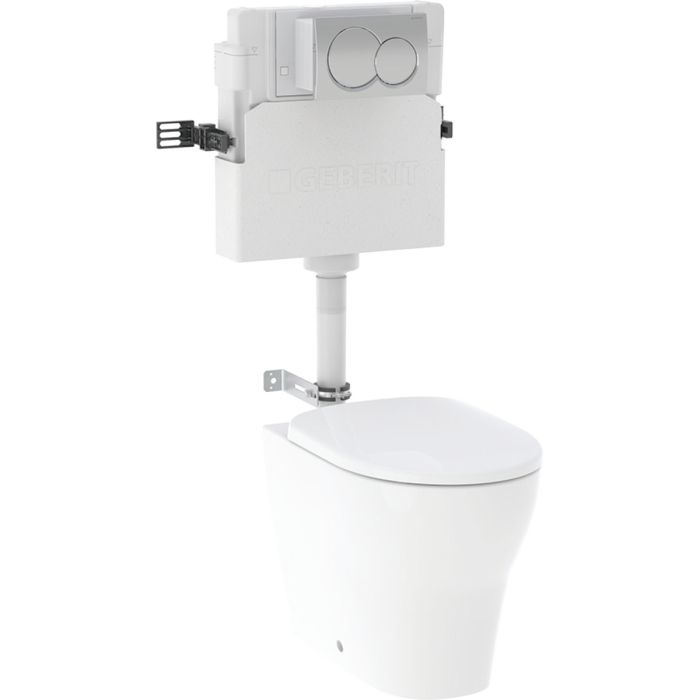

Geberit Alpha Complete Concealed Cistern DuoFix Back-to-Wall Pack (1090mm) (Round Flush Plate)

Geberit Alpha Complete Concealed Cistern DuoFix Back-to-Wall Pack (1090mm) (Round Flush Plate) 118.363.21.2

Geberit Alpha-the best in the business. When installing any type of concealed fixtures, it is essential that they have fit-and-forget reliability, the Alpha range from world leaders in quality-Geberit are the go to clear choice for WC frames. Slim (only 120mm deep), durable and built to last. With a variety of cistern/flush plate heights on offer, there is a frame to suit any WC.

This pack contains the Geberit Alpha dual flush (6/3Litres) concealed cistern with an installation height of 1090mm from drain to flushplate, Chrome Alpha01 Round flush plate, the Selnova floor-standing, back-to-wall, rim free WC and seat.

APPLICATION PURPOSES
For masonry walls
For installation in part or room-height prewall installations
For installation in room-height installation walls

CHARACTERISTICS
Geberit Alpha concealed cistern 120mm fully insulated against condensation
For front actuation, suitable for dual flush
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Immediate post flush possible with factory setting
Flush bend fitted
Water supply connection on the rear or top centre
Connection hose on angle stop valve can be attached without tools
Washdown WC
Floor-standing
Back-to-wall
Rimless WC ceramic appliance featuring Rimfree flush technology
Type 1, full flush volume 6 / 5 / 4L, in accordance with EN 997
4L flush
Horizontal or vertical outlet
Shrouded
Hidden fastening
WC seat made of Duroplast
Overlapping WC lid

TECHNICAL DATA
Flow pressure 0.1–10 bar
Maximum operating water temperature: 25 Degrees C
Flush volume, factory setting 5.8 / 3L
Button shape round
Product material Vitreous china

SCOPE OF DELIVERY
Water supply connection unit R 1/2 Inch, compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening, made of polystyrene foam
Geberit Alpha01 flush plate for dual flush, round
2 distance bolts
Flush bend 90 Degree
Protection plug
Fastening for flush bend
Flush bend extension, Diameter 45 mm
2 fixing brackets
Fastening material
Geberit Selnova floor-standing WC set, Premium, washdown, back-to-wall, horizontal or vertical outlet, shrouded, Rimfree, with WC seat
