Geberit Alpha Concealed Cistern DuoFix Frame Pack (820mm) (Square Flush Plate)

Geberit Alpha Concealed Cistern DuoFix Frame Pack (820mm) (Square Flush Plate) 458.034.21.2

Geberit Alpha-the best in the business. When installing any type of concealed fixtures, it is essential that they have fit-and-forget reliability, the Alpha range from world leaders in quality-Geberit are the go to clear choice for WC frames. Slim (only 120mm deep), durable and built to last. With a variety of cistern/flush plate heights on offer, there is a frame to suit any WC.

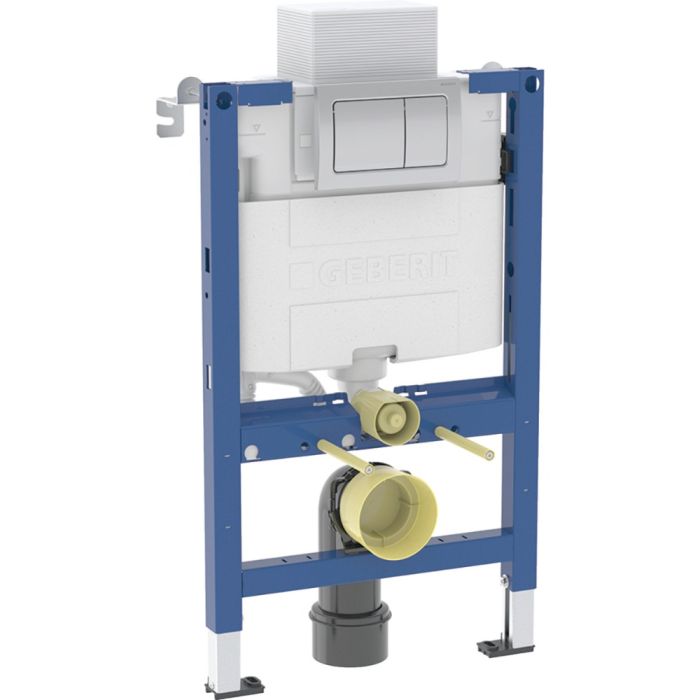

This pack contains the Geberit Alpha concealed cistern (820mm from drain to flushplate) and a Chrome Alpha01 Square flush plate.

APPLICATION PURPOSES
For metal and wood frame walls
For installation in part-height prewalls
For floor constructions 0–200mm
For wall-hung WCs

CHARACTERISTICS
Statically self-supporting frame, protected against corrosion with powder coating
Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 620mm
Frame with 9mm Diameter drilling holes for fastening in wood frame construction
Foot plates made of plastic
Foot plate depth suitable for installation in U-profiles UW 50
Galvanised leg supports protected against corrosion
Connection bend can be mounted without tools
Geberit Alpha concealed cistern 120mm fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
For top or front actuation, suitable for dual flush
Immediate post flush possible with factory setting
Water supply connection on the left
Protection box for service opening, can be cut to length, protects against moisture and dirt
With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
Fastening option for electrical connection

TECHNICAL DATA
Flow pressure 0.1–10 bar
Maximum operating water temperature: 25 Degrees C
Flush volume, factory setting 5.8 / 3L
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5L
Flush volume small, adjustment range 2–4L
Button shape square
Product material Steel

SCOPE OF DELIVERY
Water supply connection R 1/2 Inch, compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
2 wall anchors
Geberit Alpha01 (ex Alpha30) flush plate for dual flush, square
Connection set for WC, Diameter 90 mm
Connection bend 90 Degree made of PE-HD, Diameter 90 mm
Geberit pull disc for Type 212 flush valve for Omega concealed cistern 820mm
Adaptor socket made of PE-HD, Diameter 90 / 110 mm
Fastening and protection material
