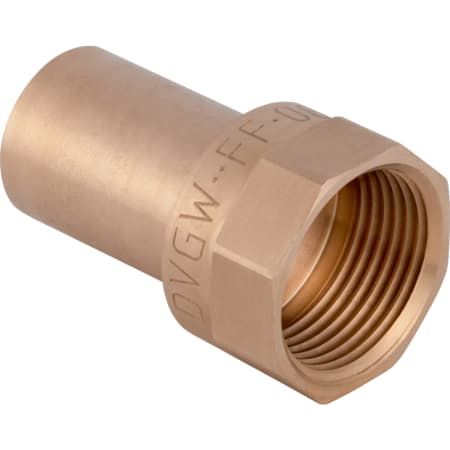

Geberit Mapress Copper Adaptor with Female Thread and Plain End (22mm x 3/4 Inch)

Geberit Mapress Copper Adaptor with Female Thread and Plain End (22mm x 3/4 Inch) 63562

Pressed quickly without an open flame.

Robust connection through cold deformation of pipe and fitting.Clear and easy detection of unpressed connections.

High pressure and temperature resistance.

Geberit Mapress Copper is the ideal material to use in drinking water installations, heating and cooling water systems, as well as gas and compressed air pipes.Geberit Mapress Copper is also suitable for special applications with increased requirements.

Geberit Mapress Copper follows the same pressing principles as all other Geberit Mapress materials.

This pressing process requires no hot works, meaning no open flame and therefore no complex fire protection requirements.

The pressing procedure is straightforward and quick.In fact, it s around twice as fast as soldering.

This is because the connection requires virtually no preparatory work and the pressing procedure itself is faster.

Cut to length, debur, mark-up, attach fitting and press.

The strength and tightness of the press connection is achieved by cold deformation of the pipe and fitting.

The pressing indicator and defined leakage paths also ensure the highest level of safety when pressing and in operation.

Leaks are reliably detected during the visual check and the subsequent pressure test.

Geberit Mapress Copper fittings are made of high-quality copper and are identified with white pressing indicators.

Mapress Copper is approved for temperatures of up to 120 Degrees C (180 Degrees C for solar applications) and pressures of up to 1.6MPa (16 bar).

The fitting range covers all conventional dimensions from 12mm to 108mm.

We recommend the use of copper pipes in compliance with EN 1057 for processing with Mapress copper fittings.

Fittings can be used with soft (R220), half-hard (R250) and hard (R290) copper pipes (wall thickness dependent).

A wide range of adaptors, which can also be pressed, establish connection options to other materials.

Geberit Mapress copper transition with MasterFix adaptor establishes the connection to Geberit cisterns and elements for washbasins.

It can be quickly and easily screwed without tools
