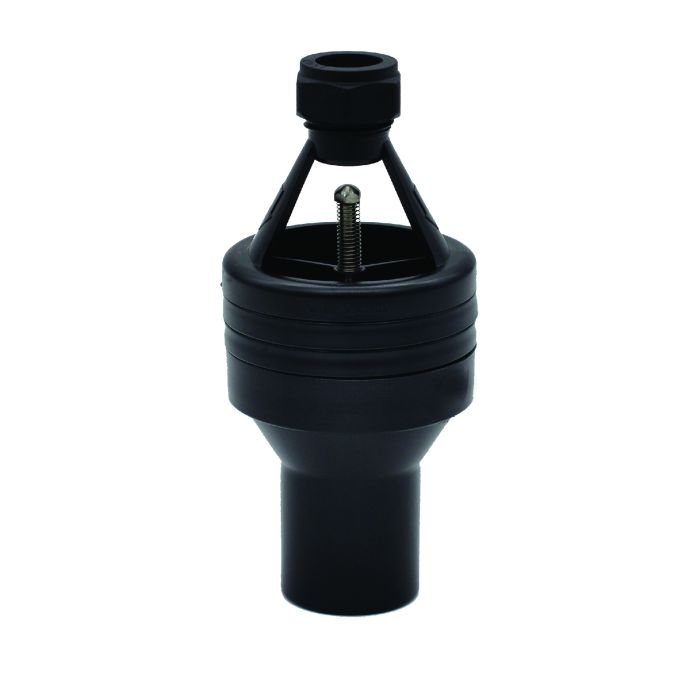

Hotun hiflo dry-trap tundish (Black)

Hotun hiflo dry-trap tundish (Black) HHB100C

Combining high flow tundish and dry-trap to provide safe and visible warning of discharge from the temperature/pressure relief valve (t/PRV) on large unvented hot water systems (more than 15L capacity) whilst eliminating the risk of foul odours from the foul system entering back into the building AND providing regulation required, back-flow contamination and back-siphonage protection to prevent contamination of any wholesome water when connecting to the waste pipe (Category 5 risk water).

Worcester Bosch, Vaillant, Ideal Heating, Ariston and KD Navien all allow the use of hotun hiflo with shield to safely discharge the boilers t/PRV and, when applicable, to combine the condense into the same single pipe discharge below the hotun for compliant connection.

Product Features:15mm (1/2 Inch) John Guest Speedfit connection on inlet.

32mm (1.1/4 Inch) HDPE or universal/compression compatible outlet (not compatible with solvent weld fittings).

Allows trickle and full-bore discharges up to 45 L/minTemperature rated up to 120 Degree C.

Air break to drain.

Safe and visible means of discharge.

10-year warranty.

Also available in white (HHWSF (Speedfit) 15-32).

Please Note: Fittings to connect the outlet to the pipework do not come with this product

Manufacturers Code: HHB100C
