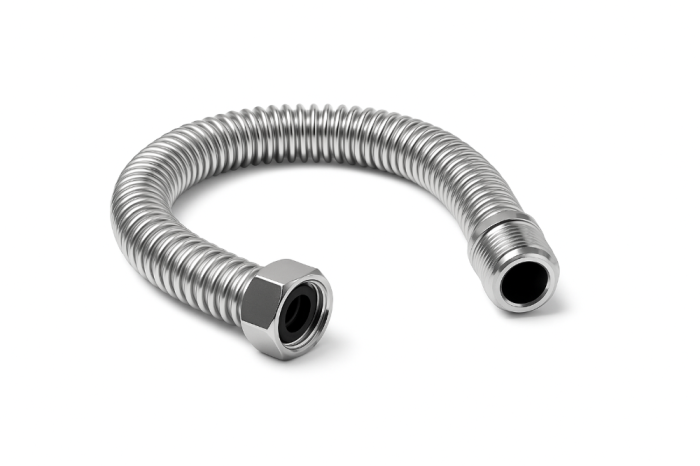

Ridgeline Flexible Connector (FM: Female 1/2 Inch BSP x 1/2 Inch Male Inch BSP x 300mm)

Ridgeline Flexible Connector (CC: 15mm Copper Compression x 1/2 Inch BSP Female x 300mm) FC-CC15-12-300

Ridgeline Flexible Connectors are premium corrugated stainless steel flexible connectors engineered for all plumbing applications, including drinking water.

Each connector assembly comprises:
Core Construction:
Primary Layer: Marine-grade 316L stainless steel with engineered corrugations that provide maximum flexibility while delivering superior crush and burst performance.
Protective Layer: High-grade polyethylene (PE) outer sleeve that protects the stainless steel from cleaning materials such as bleach.
This layer makes no contact with drinking water.
Connection System and Lengths:
End connections: A range of end connections are available.
Male, Female, M8, M10 and copper compression.
Lengths: 300mm and 500mm are our standard lengths.

Ridgeline Flexible Connectors are designed to replace traditional rubber-lined/braided flexible connectors, typically used for drinking water applications (such as taps, showers, baths washing machines, water heaters, etc). While traditional flexis often degrade and fail within 5-10 years, Ridgeline Flexi’s are built to last the lifetime of the installation where being used for drinking water applications. For industrial applications with specific requirements or corrosive fluids, please contact us for specialist advice.

Working Parameters:
Working Pressure: 10 bar maximum for potable water (Significantly higher for other applications - please ask.
Operating Temperature: -5 to 90 Degrees C
Applications: Suitable for indoor and outdoor use
Installation Environment: Domestic and commercial plumbing systems.

While independently tested to significantly higher pressure thresholds, we recommend operating within these parameters for optimal long-term reliability.

Engineered Flexibility.

Ridgeline Flexi’s feature a unique corrugated design that makes them impossible to kink or fray.

This allows for:
Superior Routing: Navigate complex installation paths effortlessly
Tight Space Installation: Create 90 Degree bends (or tighter) with zero flow restriction
Full Bore Performance: Maintain consistent internal diameter regardless of bend angle
Vibration Isolation: Reduce noise transfer and pipe movement stress.

Certifications - Ridgeline Flexi’s have both KIWA Reg 4 and WRAS certifications.

Manufactured to meet requirements of BS EN ISO 1086:2003.

Lifetime Guarantee - Flexiridge Ltd warrants that Ridgeline Flexi’s are built to last the lifetime of the building installation when used for UK drinking water applications. Provided they have been installed correctly, Flexiridge will replace any flexible connector free of charge. This guarantee is limited to the flexible connector itself and does not cover any damage that may be caused by its failure.

Sold individually.
